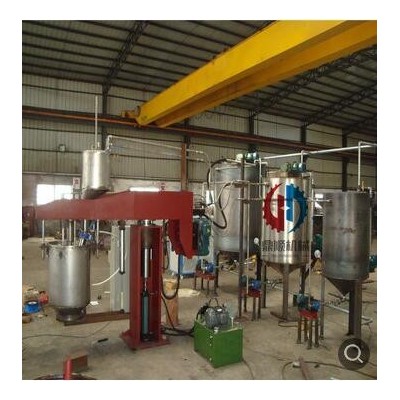

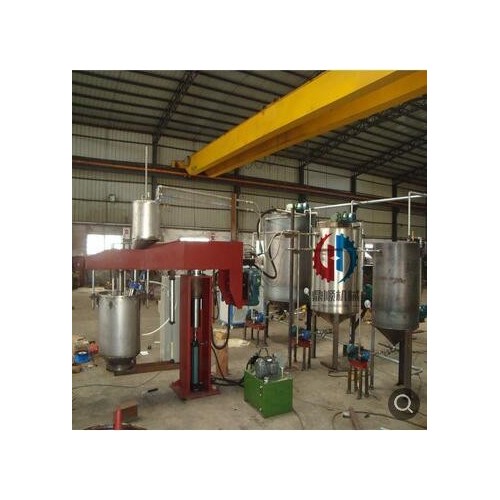

鼎順家具海綿機械 海綿發泡機小型發泡機模具

Mixer Total Power:

攪拌頭總功率:

15KW

Mixing Speed:

攪拌速度:

0r～3000r/min

0轉～3000轉/分鐘

Save Formular Q.T.Y.:

可儲存配方數量:

20 Groups.

20組

Control System:

控制系統:

PLC Touch Screen Control System

PLC觸摸屏控制系統

PPG Tank:

PPG罐:

2Ton*1Set.

2噸*1套

TDI Tank:

TDI罐:

1Ton*1Set.

1噸*1套

MC Tank:

MC罐:

0.5Ton*1Set.

0.5噸*1套

Auto Loading Pumps For PPG,POP,TDI,MC:

大料自動上料泵:

3Sets(“Line”Brand Made In China)

3套( 國產萊恩品牌)

Transducers:

減速機:

3Sets

3套

Chiller(Both Cooling & Heating System):

冷熱水一體機:

1Set*7.5KW

1臺*7.5KW

Oil Hydraulic System:

油壓系統:

1Set

1套

Air Compressor:

空氣壓縮機:

1Set*2.2KW

1套*2.2KW

Water Tower:

水塔:

1Set

1套

Water Pump:

水泵:

1Set.

1套

Foaming Density Range:

發泡密度范圍:

8～50kg/Cubicmeter.

8～50kg/立方.

Outputs:

產量:

48 Blocks/per day/8hrs

可生產泡綿48個/天/8小時

Match Mould（2sets Squre or 1set Cylinder Mould as requirement）:

配模具（方模2套或圓模1套根據需求）:

L2100mm*W2100mm*H1220mm

Dia1800mm*H2200mm

(To Be Requested)

Total Motor Power:

機器總功率:

Approx 35KW.

約35KW.

Machine N.W.:

機器總重量:

Approx 6Ton

約6噸

Floor Space Required:

占地尺寸:

L10m*W10m*H6m.
