| 品牌 : | 伯朗特 |
注塑模具機械手治具介紹伴隨著專業化水平的提升，在注塑加工制造行業中，機械臂運用制造中巨大的提升了生產率，對注塑加工工藝品，因?yàn)楫a(chǎn)品品種及出模視角差別，冶具制做千姿百態，但市面出售冶具大部分為吸、夾、抱三種方法更為時興和好用，針對大部分商品，吸、夾、抱大部分能考慮商品自動式制造規定，可是針對商品頂塊較多狀況時，商品出模較艱難，而且商品表層有皮紋面，應用吸的方式，在加工過程中，常有汲取不上，或是汲取后墜落，危害來到一切正常的制造進展，機械手廠家出售冶具也基礎為玻璃吸盤、工裝夾具和抱具;該商品沒法應用工裝夾具，假如應用抱具會造成商品形變，松江區伯朗特機械手，不適合;因此一種不僅保持自動式制造，也不可以危害產品質量的機械臂冶具變成制造中的一種關鍵必須。塑膠模具機械臂冶具要求以便處理所述難題，本發明專利公布了用作注塑加工廠的機械臂冶具，針對出模艱難的商品或出模終點站不平穩機器設備，應用這種吸鉤冶具設計方案后，保持了自動式制造零警報。本發明專利的目地是那樣保持的：用作注塑加工廠的機械臂冶具，包含模板支撐，松江區伯朗特機械手，模板支撐一側安裝有升降機臂，松江區伯朗特機械手，模板支撐另一側安裝有多個玻璃吸盤，模板支撐上安裝有多個掛勾，掛勾軸向安裝在模板支撐上。

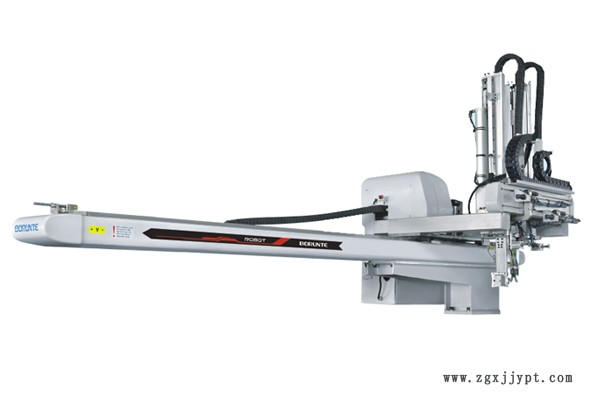

五軸橫走式機械手BRTR系列機械手臂適用100T-250T的各型臥式射出成型機，手臂形式是單截式，分3軸及5軸AC伺服驅動。取出時間1sec，全循環6sec應用于快速取出或是模內貼、模內鑲件等特殊產品應用。華成三/五軸專用 CANOPEN，總線通訊方式:信號線少，遠距離通訊，擴展性能好，抗干擾能力強，重復定位精度高，可以同時控制多軸，設備維護簡單，故障率少。 BRTR Series is applicable to all types of horizontal injection machineranges of 100T-250T for take-out products and sprues Vertical arm issingle stage. With types of three-axis and five-axis driven by AC servomotor Products take-out at super high-speed(1sec. )and dry cycle timewithin seconds, applicable to take-out products with short formingcycle or complex automatic. Also with the function of mold labeling and
mold inserting
HC three-axis/five axis CANOPEN connecting way
Less connecting line, long distance communication, good expansibilility,strong anti-interference abilility, high repeat precision, cansimultaneously control multi axis, simple equipment maintenance, low
failure rate
伺服橫走式機械手BRTB0607系列適用于30T-200T的各型臥式射出成型機的成品及水口取出。上下手臂結構是單截式，分單臂和雙管，各軸可選用電動調位，適合二/三板模取出。橫行AC伺服馬達驅動，定位精確速度快、壽命長、故障低。安裝機械手可增加產能(10-30％)、降低產品的不良率、保障操作人員的安全性、減少人工、精細的控制生產量、減少浪費、保證納期。 BRTB06/07 Series is applicable to all types ofhorizontal injection machine ranges of 30T-200T fortake-out products and sprues. Vertical arm is singletype, with product arm and runner arm two typessuitable for two plate or three plate mold productstake out. Traverse axis driven by AC servo motor
After installed this robot, the productivity will beincreased 10-30%, reduce defective rate. ensuresafety of operators, reduce manpower and accuratelcontrol the output to reduce waste
