| 品牌 : | 伯朗特 |
BRTN Series is applicable to all types of horizontal injectionmachine ranges of 220T-600T for take-outproducts and sprues,
Three-axis driven by AC servo motor，安徽高速伯朗特機械手，安徽高速伯朗特機械手, take-out at super high-speedat most 1.8sec. Easy for E-O-A-T adjustment, long using life andlow failure rate, applicable to take-out products with short formingcycle or complex automatic，安徽高速伯朗特機械手, such as auto products, washingmachine and household appliance products take-outHC three-axis/five axis CANOPEN connecting way
Less connecting line, long distance communication, goodexpansibility, strong anti-interference ability, high repeat
precision, can simultaneously control multi axis, simple equipmentmaintenance, low failure rate
同時將下模內部的成品擠出去，從而使裝置在收取成品時就能將間隔件放置在下模內腔中，不需要人工將下模中的產品取出，降低生產產品的繁瑣程度，降低工作人員的工作量。附圖說明圖1為本技術結構示意圖；圖2為本技術連接塊與收集箱連接結構示意圖。圖中：1、注塑機本體；2、側板；3、下模；4、底板；5、固定桿；6、伺服滑臺；7、電動伸縮桿；8、上模；9、負壓吸附裝置；10、開孔；11、連接塊；12、收集箱；13、導向桿；14、連接桿；15、限位塊；16、固定塊；17、固定槽。具體實施方式下面將結合本技術實施例中的附圖，對本技術實施例中的技術方案進行清楚、完整地描述，顯然，所描述的實施例僅僅是本技術一部分實施例，而不是全部的實施例?；诒炯夹g(shù)中的實施例，本領域普通技術人員在沒有做出創造性勞動前提下所獲得的所有其他實施例，都屬于本技術保護的范圍。請參閱圖1-2，本技術提供一種技術方案：一種用于冰箱配件生產的注塑機機械手，包括注塑機本體1，注塑機本體1頂部左右兩側外壁均設置有側板2，側板2與注塑機本體1固定連接，兩組側板2相互靠近的一側底部外壁均設置有固定桿5，固定桿5與側板2固定連接，兩組固定桿5之間設置有下模3，下模3與固定桿5固定連接。

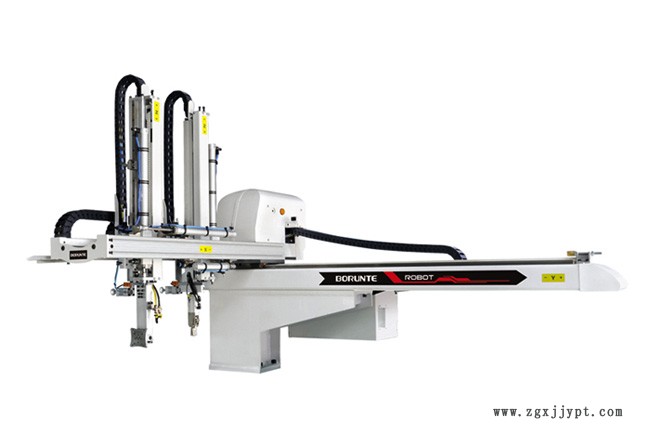

三軸伺服橫走式機械手BRTM系列機械手臂適用150T-380T的各型臥式射出成型機，手臂形式是雙截式，分3軸及5軸AC伺服驅動。取出時間1.2sec，全循環6sec應用于快速取出或是模內貼、模內鑲件等特殊產品應用。華成三/五軸專用 CANOPEN總線通訊方式信號線少，遠距離通訊，擴展性能好，抗干擾能力強，重復定位精度高，可以同時控制多軸，設備維護簡單，故障率少。 BRTM Series is applicable to all types of horizontal injectionmachine ranges of 150T-380T for take-out products and sprues
Vertical arm is telescopic stage. Full AC servo motor driven oneach axis, Products take-out at supernlgh-speed (1. 2sec. )and drycycle time within seconds, applicable to take-out products withshort forming cycle or complex automatic. Also with the function of
mold labeling and mold inserting
HC three-axis/five axis CANOPEN connecting way.
Less connecting line. long distance communication, good
expansibility
strong anti-interference ability, high repeat
precision, can simultaneously control multi axis, simple equipmentmaintenance, low failure rate.
